| Brand Name: | Aquacells |
| Model Number: | EIMD-30UP |

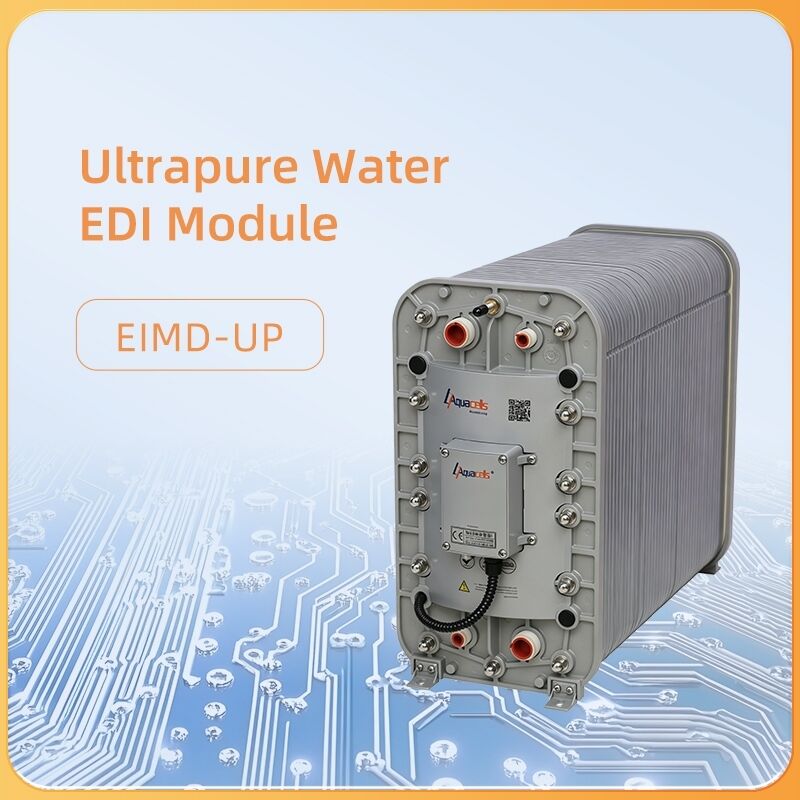

Aquacells EIMD-UP module are designed for ultrapure water applications,with a primary focus on meeting the high-standard water quality requirements of the semiconductor and pharmaceutical industries.
| Parameter | Specification |
|---|---|
| FCE (including CO2 and Silica) | < 45 µS/cm |
| Temperature | 5-45 ℃ (40-113 ℉) |
| Feed pressure | 1.4-7 bar (20-100 psi) |
| Total Chlorine (as CI2) | <0.05 ppm |
| Fe | <0.01 ppm |
| Mn | <0.01 ppm |
| S2- | <0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | <1.0 ppm |
| Dissolved Organics (TOC as C) | <0.5 ppm |
| Silica (SiO2) | <1.0 ppm |
| Parameter | Specification |
|---|---|
| Typical Recovery | 90-95% |
| Maximum Feed Pressure | 7 bar (100 psi) |
| Maximum Feed Temperature | 45 ℃ (113 ℉) |
| DC Voltage* | 0-300 V |
| DC Amperage | 0-6 A |
| Product Resistivity | >16 MΩ·cm |
| Silica (SiO2) Removal | 90-99% depending on feed water |
