| Brand Name: | Aquacells |
| Model Number: | EIMD-10CP |

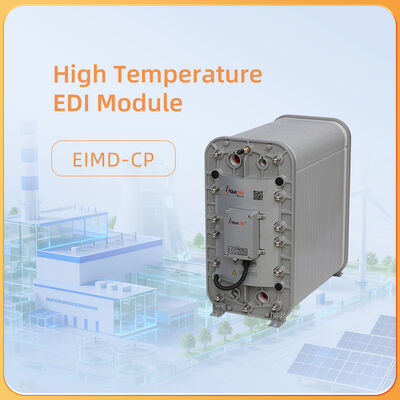

The Aquacells EIMD-CP module is engineered to replace mixed bed technology for condensate polishing treatment. Utilizing continuous electrodeionization (EDI) technology, this system produces water with resistivity exceeding 16 MΩ·cm without requiring shutdown and regeneration cycles.
| Parameter | Specification |
|---|---|
| Feed Water Source | Condensate water |
| Temperature | 60-65 ℃ (140-149 ℉) |
| Feed Pressure | 1.4-7 bar (20-100 psi) |
| Fe Content | <0.01 ppm |
| pH Range | 4-11 |
| Oil Content | <0.2 ppm |
| Parameter | Performance |
|---|---|
| Typical Recovery | 90-95% |
| Maximum Feed Pressure | 7 bar (100 psi) |
| Maximum Feed Temperature | 65 ℃ (149 ℉) |
| DC Voltage* | 0-300 V |
| DC Amperage | 0-6 A |
| Product Resistivity | >16 MΩ·cm |
*Voltage required depends on module size
The information provided contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
