| Brand Name: | Aquacells |
| Model Number: | EIMD-30HP |

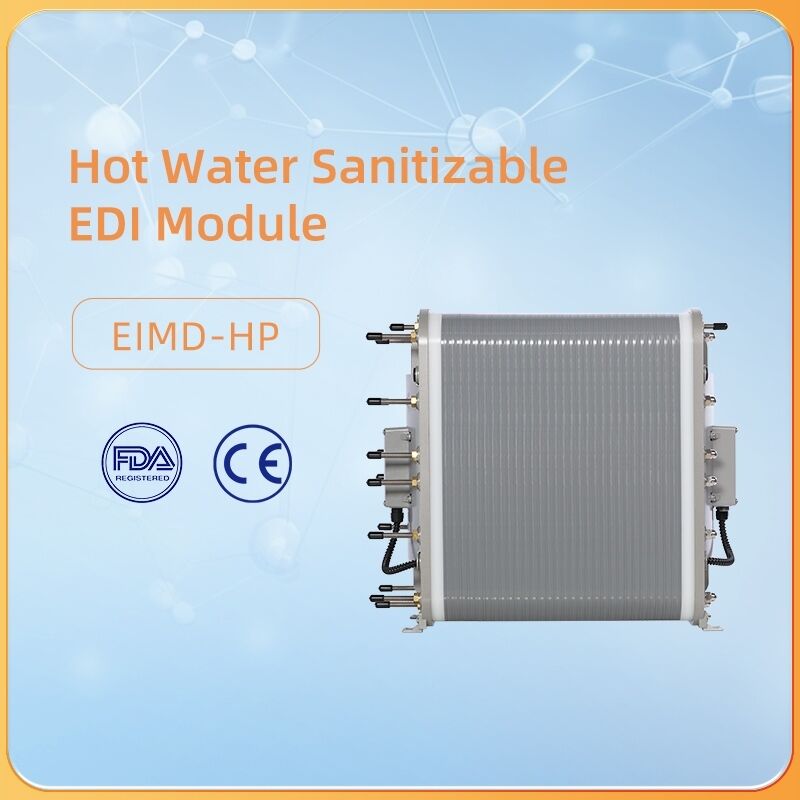

The Aquacells EIMD-HP module is specifically engineered for hot water sanitization applications and is widely utilized in Pharmaceutical, biotechnology, and cosmetics industries. Constructed from high-temperature resistant materials to accommodate instantaneous heating and cooling requirements, this module delivers a constant flowrate of high-purity water without the need for chemical regeneration.
| Parameter | Specification |
|---|---|
| FCE (including CO2 and Silica) | < 45 µS/cm |
| Temperature | 5-45 ℃ (40-113 ℉) |
| Feed pressure | 1.4-7 bar (20-100 psi) |
| Total Chlorine (as CI2) | <0.05 ppm |
| Fe | <0.01 ppm |
| Mn | <0.01 ppm |
| S2- | <0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | <1.0 ppm |
| Dissolved Organics (TOC as C) | <0.5 ppm |
| Silica (SiO2) | <1.0 ppm |
| Parameter | Performance |
|---|---|
| Typical Recovery | 90-95% |
| Maximum Feed Pressure | 7 bar (100 psi) |
| Maximum Feed Temperature | 45 ℃ (113 ℉) |
| Sanitization Temperature at 30 psi (2.0 bar) | 85 ℃ (185 ℉) |
| DC Voltage* | 0-600 V |
| DC Amperage | 0-10 A |
| Product Conductivity | <0.1 µS/cm |
| Silica (SiO2) Removal | 90-99% depending on feed water |
*Voltage required depends on module size
The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
