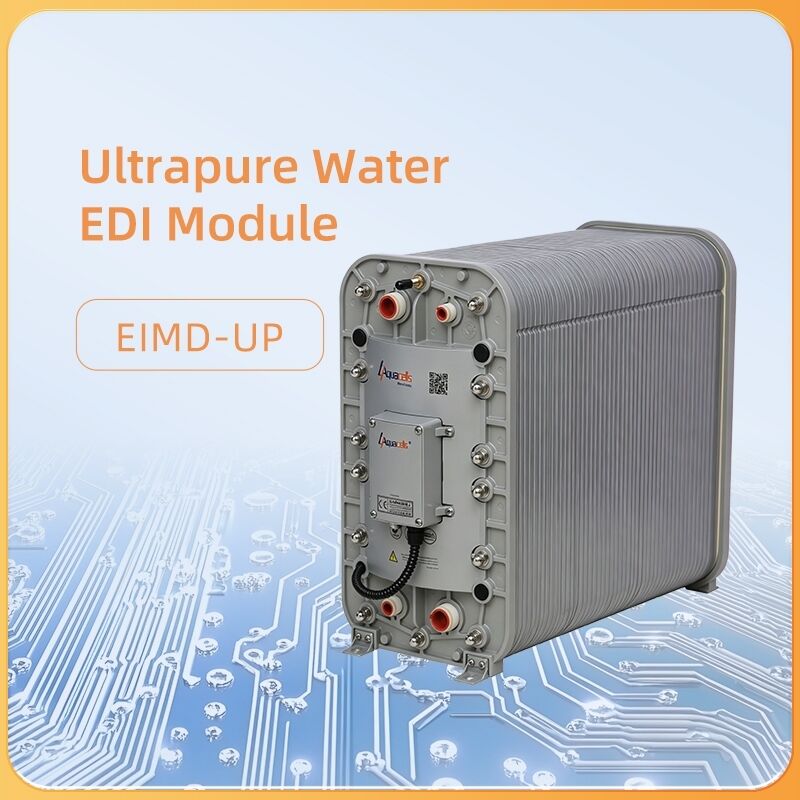

EIMD-70UP Ultrapure Water EDI Electrodeionization Module >16MΩ*cm Resistivity

Brand Name:	Aquacells
Model Number:	EIMD-70UP

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA，EU，CE，RoHS，REACH

Removal Rate:

99.99% Ionic Contaminants

Weight:

15 Kg

Dimensions:

500mm X 300mm X 200mm

Maintenance Interval:

6-12 Months

Purity Level:

18.2 MΩ·cm Resistivity

Power Supply:

220 V/50 Hz Or 110 V/60 Hz

Technology:

Electrodeionization (EDI)

Operating Temperature:

5-45 °C

Material:

High-grade Ion Exchange Membranes And Resins

Recovery Rate:

90-95%

Water Source:

RO Permeate Or Deionized Water

Operating Pressure:

0.1-0.4 MPa

Product Name:

Ultrapure Water EDI Module

Application:

Pharmaceutical, Electronics, Laboratory, And Power Plants

Flow Rate:

1-10 Liters Per Minute

Highlight:

EDI Electrodeionization Module

Ultrapure Water Electrodeionization Module

Product Description

EIMD-70UP Ultrapure Water Module with 90-95% Recovery >16MΩ*cm Resistivity and 90-99% Silica Removal for Semiconductor and Power Industries

Aquacells EIMD-UP module are designed for ultrapure water applications,with a primary focus on meeting the high-standard water quality requirements of the semiconductor and pharmaceutical industries.

Feed Water Specifications

Parameter	Specification
FCE (including CO₂ and Silica)	< 45 µS/cm
Temperature	5-45 ℃ (40-113 ℉)
Feed pressure	1.4-7 bar (20-100 psi)
Total Chlorine (as CI₂)	<0.05 ppm
Fe	<0.01 ppm
Mn	<0.01 ppm
S^2-	<0.01 ppm
pH	4-11
Total Hardness (as CaCO₃)	<1.0 ppm
Dissolved Organics (TOC as C)	<0.5 ppm
Silica (SiO₂)	<1.0 ppm

Typical Module Performance

Parameter	Specification
Typical Recovery	90-95%
Maximum Feed Pressure	7 bar (100 psi)
Maximum Feed Temperature	45 ℃ (113 ℉)
DC Voltage*	0-300 V
DC Amperage	0-6 A
Product Resistivity	>16 MΩ·cm
Silica (SiO₂) Removal	90-99% depending on feed water

*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
